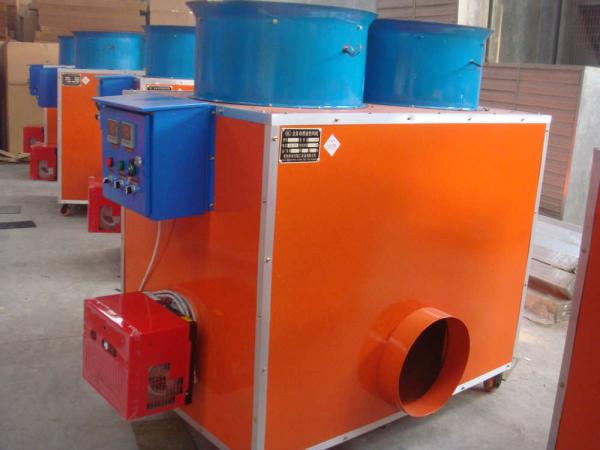

poultry/livestock/greenhouse air heater

Features

1.Heating area: 300/600/1200 square meters.

2.The combustion chamber is made of stainless steel.

3.Its thermal conversion reaches as high as 90%.

4. Equipped with Riello brand burner,When set needed temperature, it will automatically start on , fire up, heat up, supply air and stop  to keep constant temperature.

5.The heat exchanger uses the three-pass design.

6. Our unique furnace thermal protection and insulation system can minimize heat loss.

7.Pro-nvironment, cost saving.

Model

rder-5

rder-10

rder-20

Heat output power    kcal/h

50000 kcal/h

100000 kcal/h

200000 kcal/h

Heat efficiency  ≥%

≥90%

≥90%

≥90%

Fuel

                       Diesel oil

Diesel oil

Diesel oil

Consumption     kg/h

2-4.9 L/h

5-9.8 L/h

12-19.6 L/h

Way of control

Auto

Auto

Auto

Air flow   m³/h

5000 m³/h

5500 m³/h

7000 m³/h

Temperature rise °C

80-120 °C

80-120 °C

80-120 °C

Power Source  V/Hz

380V/50Hz

380V/50Hz

380V/50Hz

Electric power   kw

0.6Kw

1.0Kw

1.5Kw

Diameter of air outlet mm

400mm

400mm

400mm

Weight      kg

400Kg

600Kg

700Kg

Dimension

length×width×height  mm

1400×850×1370

1600×900×1400

1700×1000×1500

Material of frame

Galvanized +spray paint

Galvanized +spray paint

Galvanized +spray paint

Quality guarantee period

One year warranty lifelong service

One year warranty lifelong service

One year warranty lifelong service
