Poultry Exhaust Fan,Ventilation Fan,Cooling Fan,Air Cooler Fan,Poultry Fan,Farm Fan,Industry Fan,Greenhouse Fan,Chicken House Fan,Evaporative Cooling Pad,Cooling System.
North Husbandry Company is a super manufacturer of Exhaust Fan and Cooling Pad. Our products can improve air pure and fresh. We have other products, if you need.to know it.
Best Solution: Fresh Air,High Humidity and Cooling.
1. We have three models to be choose: 1380x1380x400mm and 1000x1000x400mm
| Model | Diameter Blades | Blades rotational speed | Motor rotational speed | Air flow | Total pressure | Noise decibels | Import power | Rated voltage | High | Widh | Thick |
| Fan-39'' | 910 mm | 438 rpm | 1400 rpm | 21000 | 57 | <=65 | 550 | 380 | 1000 | 1000 | 400 |
| Fan-54'' | 1250 mm | 437 rpm | 1400 rpm | 44000 | 57 | <=65 | 1100 | 380 | 1380 | 1380 | 400 |
Exhaust Fan,Ventilation Fan,Cooling Fan,Air Cooler Fan,Poultry Fan,Farm Fan,Industry Fan,Greenhouse Fan,Chicken House Fan,Evaporative Cooling Pad,Cooling System.
Blade: 3 types of material for choose: stainless steel/aluminum/galvanized sheet. Adopting a punch forming technology.
Frame: adopting advanced automatic manufacturing process, made of thick galvanized sheet.
Shutter: made of hot galvanized sheet with thickness 1.0 and 1.2mm, to increase the quality and the stability while working.
Motor: both China high quality motor and Siemens motor are available. Aproved by CCC certificate, protecting level: IP55, insulation level: F class.
V-Belt: imported from Japan and Korea. Resistance to abrasion, without deformation.
Centrifugal system: adopting high-class nylon mixed with amount of fiber glass. All parts are connected by rivets. This system will be assure to open the shutter with 90 degree when the fan working.
Fan belt pulley and flange: made of high aluminum-magnesium alloy by die-casting. Light weight, low vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

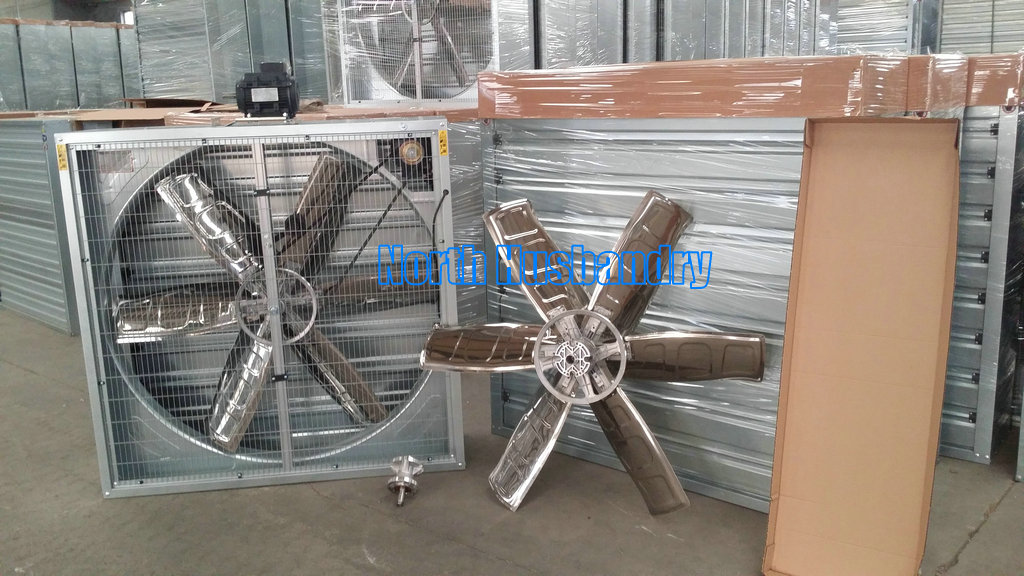

2.Exhaust Fan Accessories and composition Exhaust Fan,Ventilation Fan,Cooling Fan,Air Cooler Fan,Poultry Fan,Farm Fan,Industry Fan,Greenhouse Fan,Chicken House Fan,Evaporative Cooling Pad,Cooling System.

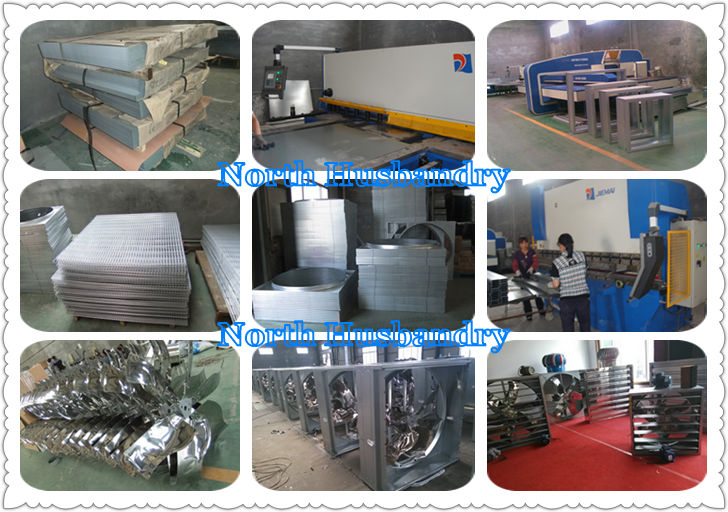

3. Exhaust Fan Production line
We also can provide the whole cooling pad production line machines
6. Examples of Application
7. Shipping and Transportation
8. Advantage and Certificate
Exhaust Fan,Ventilation Fan,Cooling Fan,Air Cooler Fan,Poultry Fan,Farm Fan,Industry
|
|
Poultry ventilation systems Fans, Exhaust Chimneys Images
|
